Nema Standard Single-Phase motor with start/run Capacitor 60Hz 3450 RPM
230V Capacitor Start
Pump body: upper/medium/lower cover adjusting valve are made of Cast Iron. Clapboard is made of 304 S.S, 1 1/4" NPT sanction, 3/4" NPT discharge
Built in overload with automatic reset
Stainless Steel Shaft
Maximum Medium Temp. 140F
With Ejector & Adaptor
Sanction: 25ft - 80ft
Rated Flow: 8.7GPM

Deep well

Designed for residential use including industrial water supply by boosting main pipeline, farmland irrigation, etc.

Deep well pumps require a pressure control device on the discharge and a jet assembly package. Adjustable automatic Control Pressure

Control Valve guarantees maximum capacity at all times. By-pass Check Valves equalizes pressure in entire system and help prevent loss of prime.

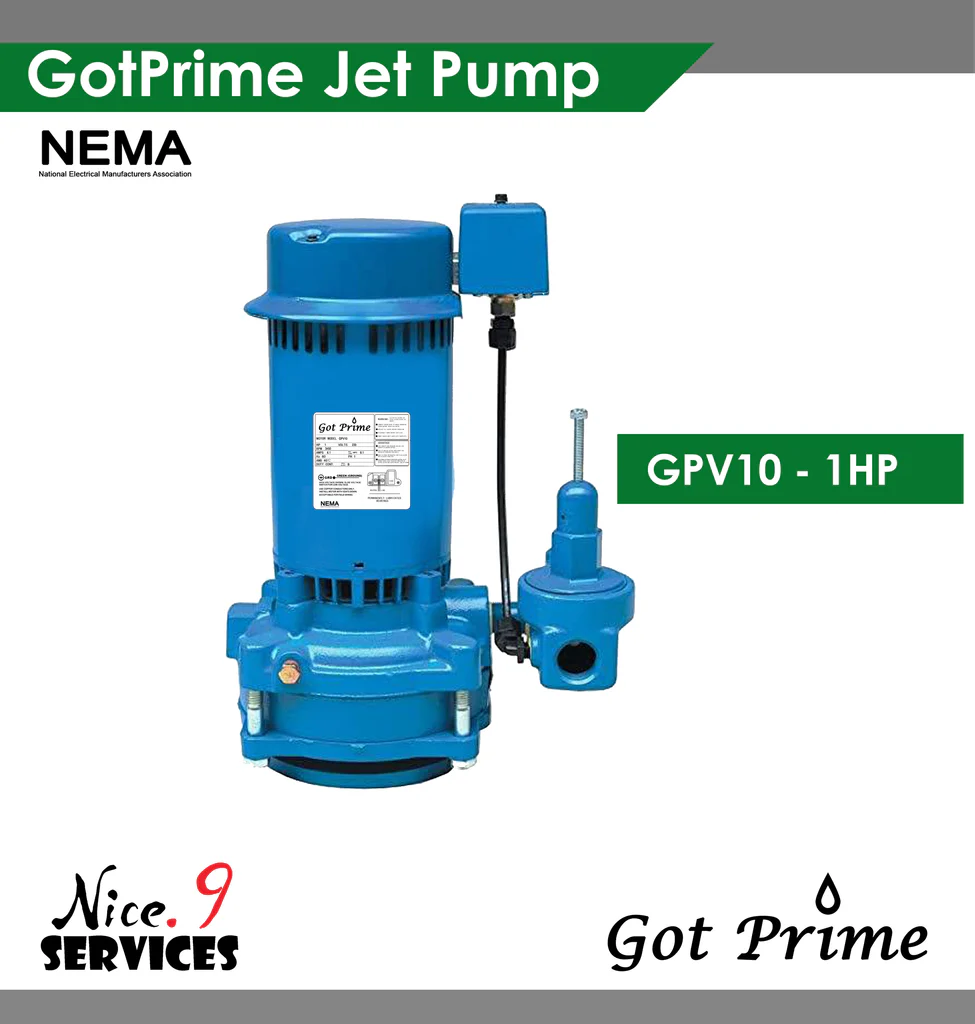

GPV10
