Product SPECS
- Head up to 210ft
- Nema STandard Single Phase motor with start/run Capacitor 60Hz 3450 RPM
- 230V Capacitor Start
- Pump body:upper/meduim/lower cover adjusting valve are made of Cast Iron. Clapboard is made of 304 S.S, 1 1/4" NPT sunction, 3/4" NPT discharge
- Built in overload with automatic reset
- Stainless Steel Shaft
- Maximum Medium Temp. 140F
- With Ejector & Adaptor
- Suction: 25ft - 100ft
- Rated Flow: 8.3GPM

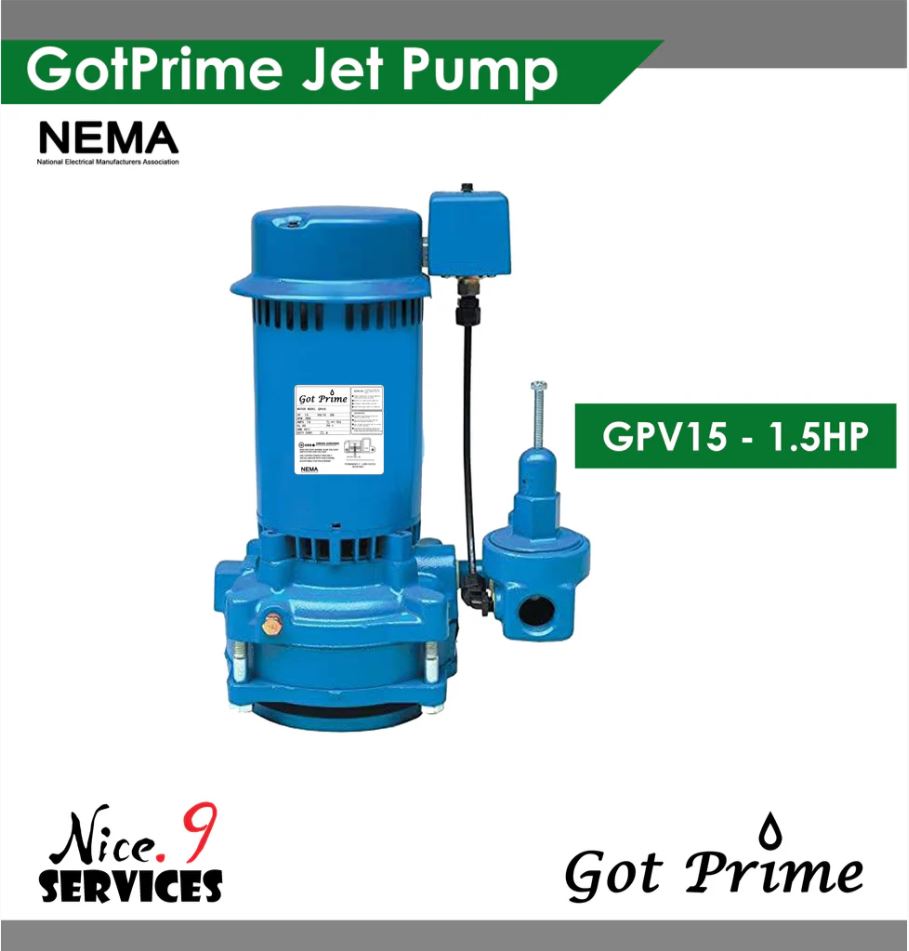

GPV15
Designed for residential use including industrial water supply by boosting main pipeline, farmland irrigation, etc.
Deep well pumps require a pressure control device on the discharge and a jet assembly package. Adjustable automatic Control Pressure
Control Valve guarantees maximum capacity at all times. By-pass Check Valves equalizes pressure in entire system and help prevent loss of prime.
