OPERATING CONDITION

• Ambien temperature : Max. 40˚C
• Liquid temperature: 2-50˚C
• Suction Head: Max. 6M
• Before using the pump, be sure the inlet pressure setting is lower than on setting of pressure switch.
• For clean liquids, without impurity or chemical matters

Advantages:

• Auto Booster Pump means ‘’SOLUSYON SA MAHINANG PRESSURE NG TUBIG’’ is all in one and high technology pump made in TAIWAN.
• NO need a BIG pressure tank.
• The impeller is made of bronze not easy to have rust.
• Low noise operation to uplift standard of living.
• Auto booster water pressure when water is consumed; Stop running automatically when water is not consumed, saving your electricity

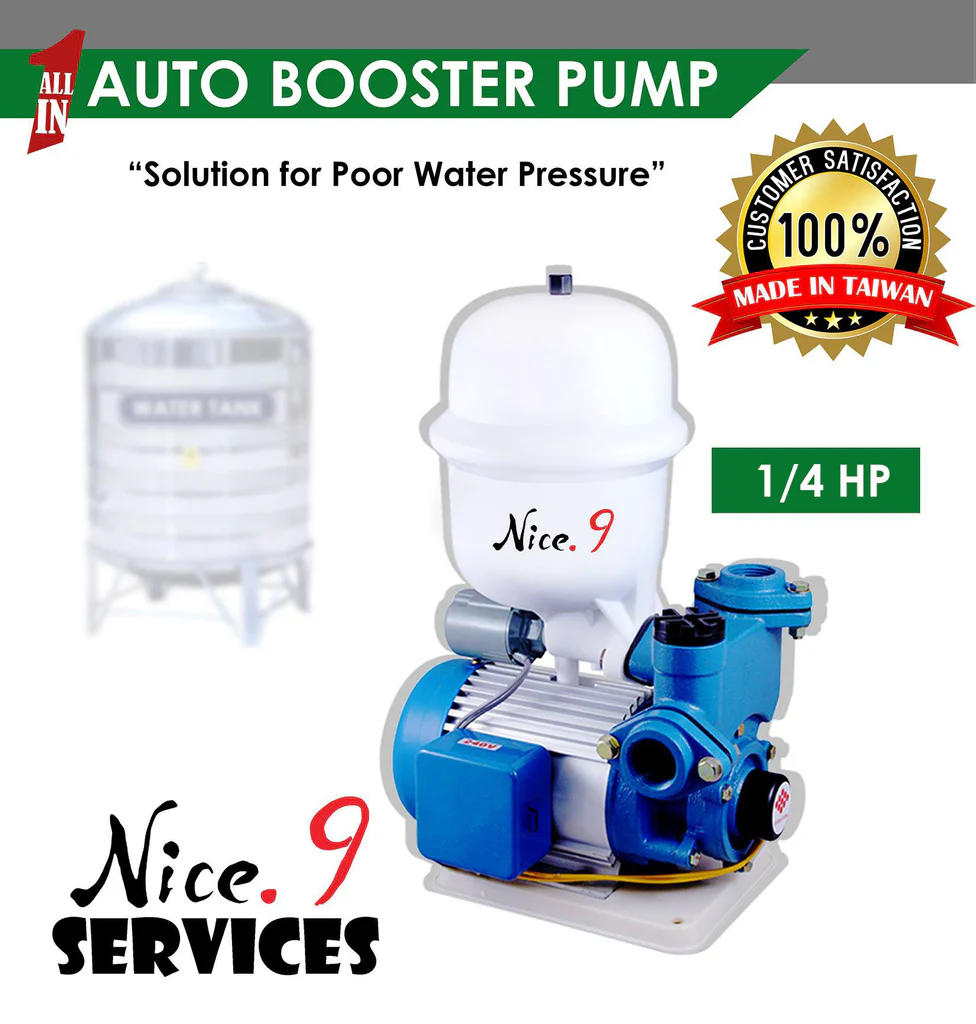

Product details of WATER PUMP / Auto Booster Pumps V260H

          (1/4HP, 220V,60Hz, 1 inlet/outlet)

• Pre-pressure one-piece forming diaphragm pressure tank with good appearance and corrosive resistant.
• Water supply and pressure boosting in residential and commercial applications.
• Water pressure boosting for barber shop, restaurant, sprinkler systems, washing machine, residence, villa.

Product SPECS

• Max. Head: 30M
• Max. Capacity: 40LPM
• Pressure set: (on) 1.4 / (off) 2.4 bar.
• Power: 1/4HP 180W
• Motor: IP54 / Insulation B
•


Package Weight (kg) 10.5Package Dimensions (cm) 41 X 29 X 51.3
